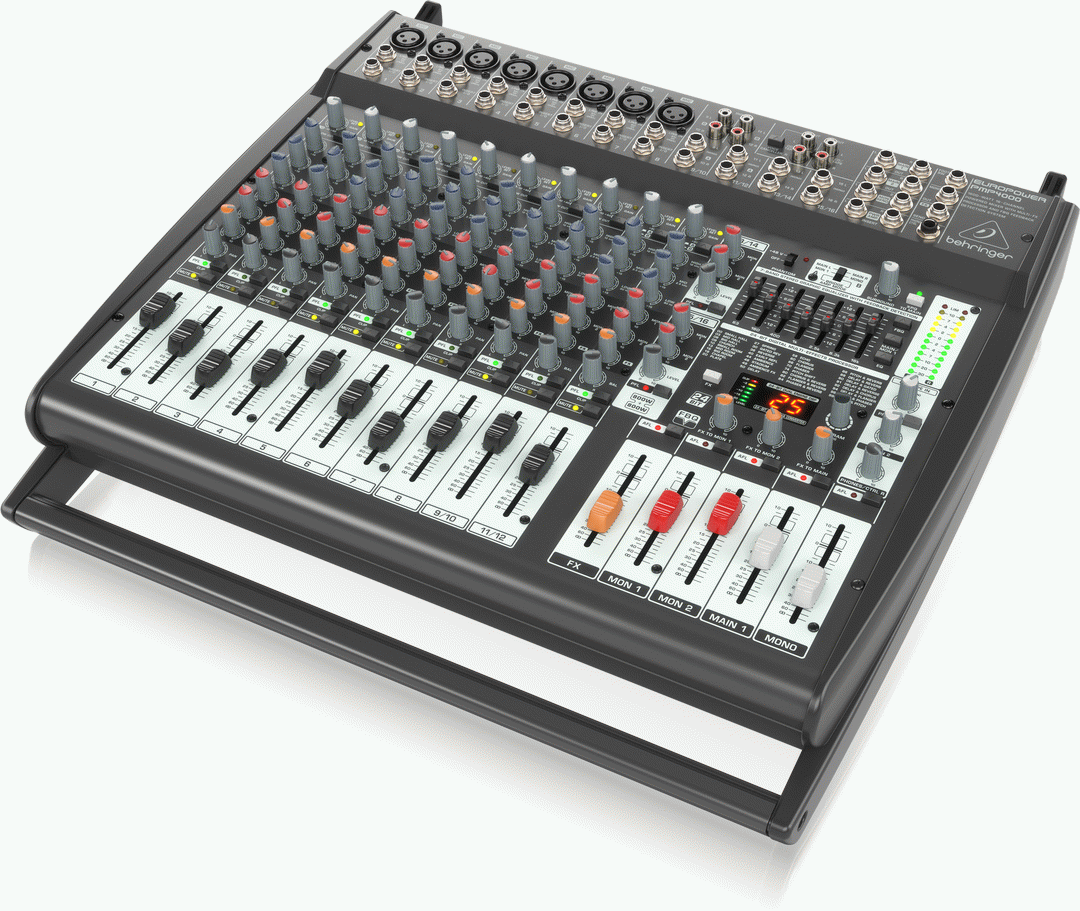

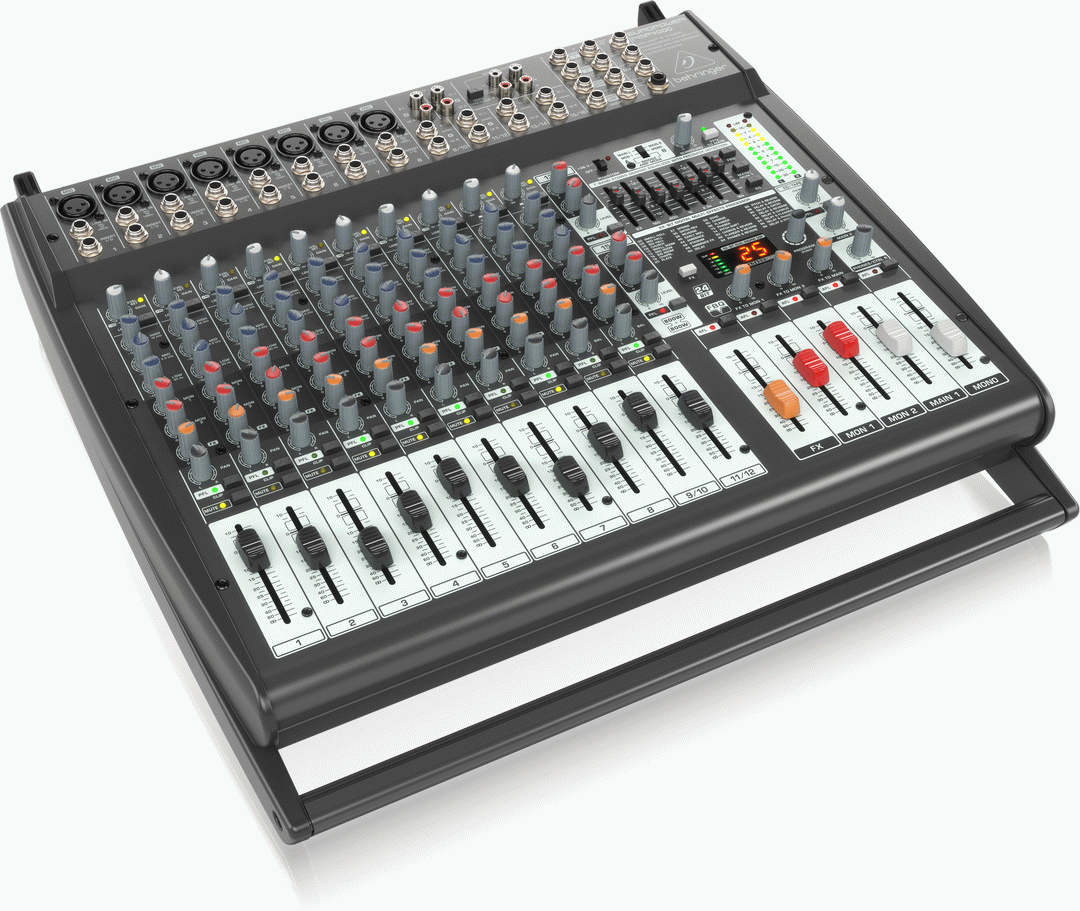

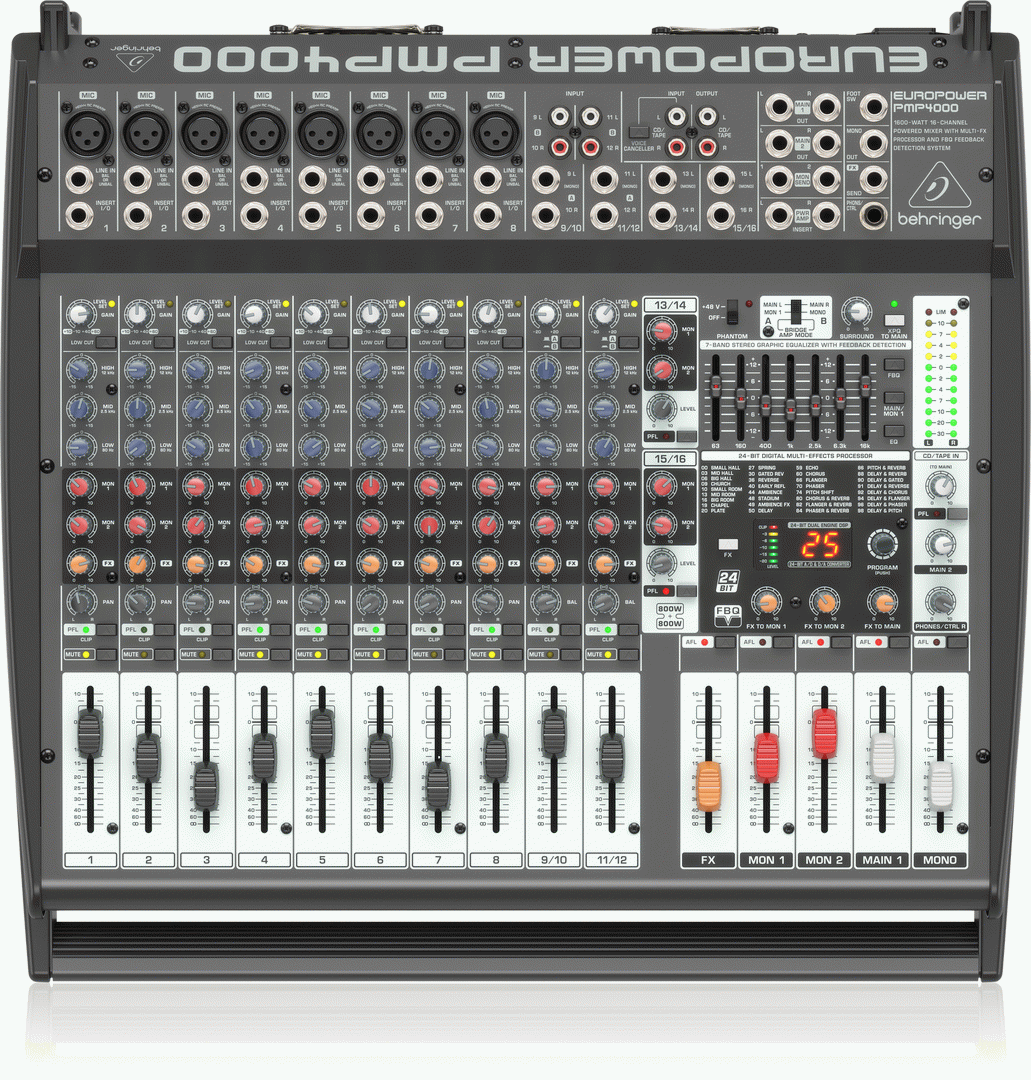

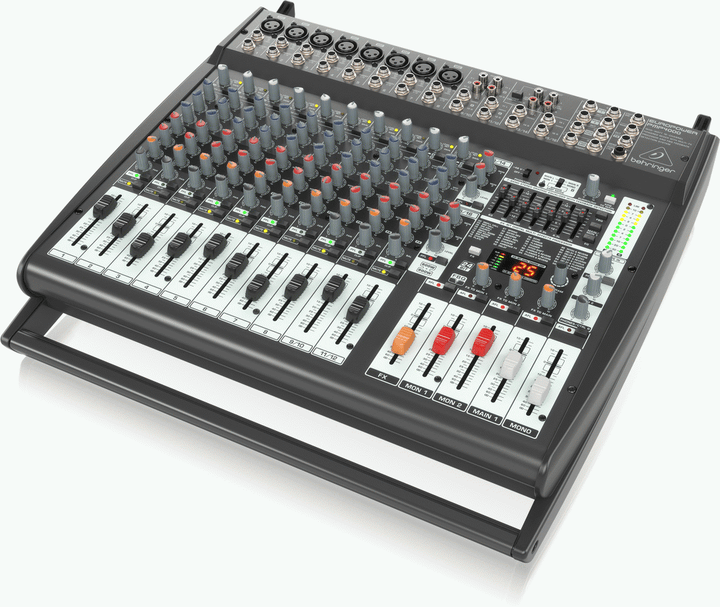

Behringer EUROPOWER PMP4000 1600W 16-Channel Powered Mixer

The Behringer EUROPOWER PMP4000 Powered Mixer combines a versatile 16-channel analogue mixer, high-efficiency Class-D amplification and studio-quality digital effects in one compact live sound solution.

Designed for bands, churches, schools, rehearsal spaces, presentations and medium-sized events, the PMP4000 provides up to 2 x 800 watts peak in stereo or 1,600 watts peak in bridged mono mode. Its lightweight construction and built-in amplifier eliminate the need to transport a separate mixing console and power amplifier.

The mixer section features eight mono input channels with XENYX microphone preamps, four stereo channels and a separate CD/Tape input and output. Switchable +48V phantom power allows compatible condenser microphones to be connected directly.

A built-in 24-bit digital effects processor provides 100 presets, including reverb, chorus, flanger, delay, pitch shifting and combination effects. The stereo seven-band graphic equaliser includes Behringer’s FBQ Feedback Detection System, which highlights troublesome frequencies for faster feedback control.

Whether you are running vocals and instruments for a live band, operating a portable church sound system or providing audio for an event, the EUROPOWER PMP4000 offers flexible mixing, amplification and signal processing in one convenient unit.

Key Features

1,600-Watt Peak Class-D Amplification

The integrated Class-D amplifier provides powerful sound reinforcement while helping reduce the overall weight, heat and power consumption of the mixer.

The PMP4000 supports three amplifier configurations:

• Stereo Main Left and Right

• Dual Mono Main and Monitor

• Bridged Mono

Versatile 16-Channel Mixer

The mixer section includes eight mono channels and four stereo channels, providing flexible connectivity for microphones, instruments, keyboards, playback devices and other audio sources.

Eight XENYX Microphone Preamps

Eight studio-grade XENYX microphone preamps provide high headroom and clear signal reproduction for vocals, speech and acoustic instruments.

Switchable +48V Phantom Power

Global +48V phantom power allows compatible condenser microphones and active direct boxes to be connected through the XLR microphone inputs.

Built-In 24-Bit Multi-Effects Processor

Choose from 100 digital effects presets, including:

• Reverb

• Chorus

• Flanger

• Delay

• Pitch shifting

• Combination effects

Effects can be applied to the main mix and monitor mix without requiring an external effects processor.

FBQ Feedback Detection

The built-in FBQ Feedback Detection System identifies problematic frequency ranges by illuminating the relevant graphic EQ fader, making it easier to locate and reduce feedback.

Stereo Seven-Band Graphic Equaliser

The seven-band graphic EQ provides additional control over the main or monitor mix, allowing the sound to be adjusted for different speakers, rooms and performance environments.

Three-Band Channel EQ

Each mono channel includes a musical three-band equaliser, switchable low-cut filter and clip indicator for convenient signal shaping and level monitoring.

Flexible Main and Monitor Operation

The amplifier can operate in stereo, dual-mono main and monitor, or bridged-mono configurations, allowing the mixer to suit a wide range of portable PA setups.

XPQ 3D Stereo Surround Effect

Behringer’s XPQ surround processing can widen the perceived stereo image for a broader and more immersive sound.

Voice Canceller Function

The integrated Voice Canceller helps reduce lead vocals from compatible stereo recordings, making it useful for karaoke, rehearsal and performance applications.

Lightweight and Portable Design

Despite combining a full mixer, amplifier, effects processor and equalisation system, the PMP4000 weighs approximately 10.4 kg, making it easier to transport between venues.

Specifications

• Brand: Behringer

• Series: EUROPOWER

• Model: PMP4000

• Product Type: Powered analogue mixer

• Mixer Channels: 16

• Mono Channels: 8

• Stereo Channels: 4

• Microphone Preamps: 8 XENYX preamps

• Microphone Inputs: 8 x balanced XLR

• Phantom Power: Switchable +48V

• Channel EQ: Three-band EQ

• Low-Cut Filter: Yes, on mono channels

• Built-In Effects: 24-bit digital Multi-FX processor

• Effects Presets: 100

• Graphic Equaliser: Stereo seven-band EQ

• Feedback Detection: FBQ Feedback Detection System

• Stereo Enhancement: XPQ 3D stereo surround

• Voice Canceller: Yes

• Amplifier Technology: Class-D

• Stereo Peak Power at 4 Ohms: 2 x 800W

• Stereo RMS Power at 4 Ohms: 2 x 600W

• Stereo Peak Power at 8 Ohms: 2 x 400W

• Stereo RMS Power at 8 Ohms: 2 x 300W

• Bridged Peak Power at 8 Ohms: 1,600W

• Bridged RMS Power at 8 Ohms: 1,200W

• Amplifier Modes: Stereo, dual mono and bridged mono

• Speaker Outputs: Professional locking speaker connectors

• Standard Speaker Impedance: 4–8 ohms

• Bridged Speaker Impedance: 8–16 ohms

• CD/Tape Connections: Stereo RCA input and output

• Headphone/Control Room Output: Yes

• Power Supply: Internal switch-mode power supply

• Australian Mains Voltage: 230V, 50Hz

• Dimensions: 460 W x 476 D x 122 H mm

• Weight: Approximately 10.4 kg

• Colour: Black

Suitable For

• Live bands and musicians

• Churches and houses of worship

• Schools and community halls

• Rehearsal rooms

• Portable PA systems

• Corporate presentations

• Public speaking

• Small and medium-sized venues

• Karaoke and entertainment events
